OSM45-KL300CB6Q12.1/485
Key featuresDownloads
Prices excl. VAT plus shipping costs
Add to favorites Join comparison
Product number: OSM45-KL300CB6Q12.1/485

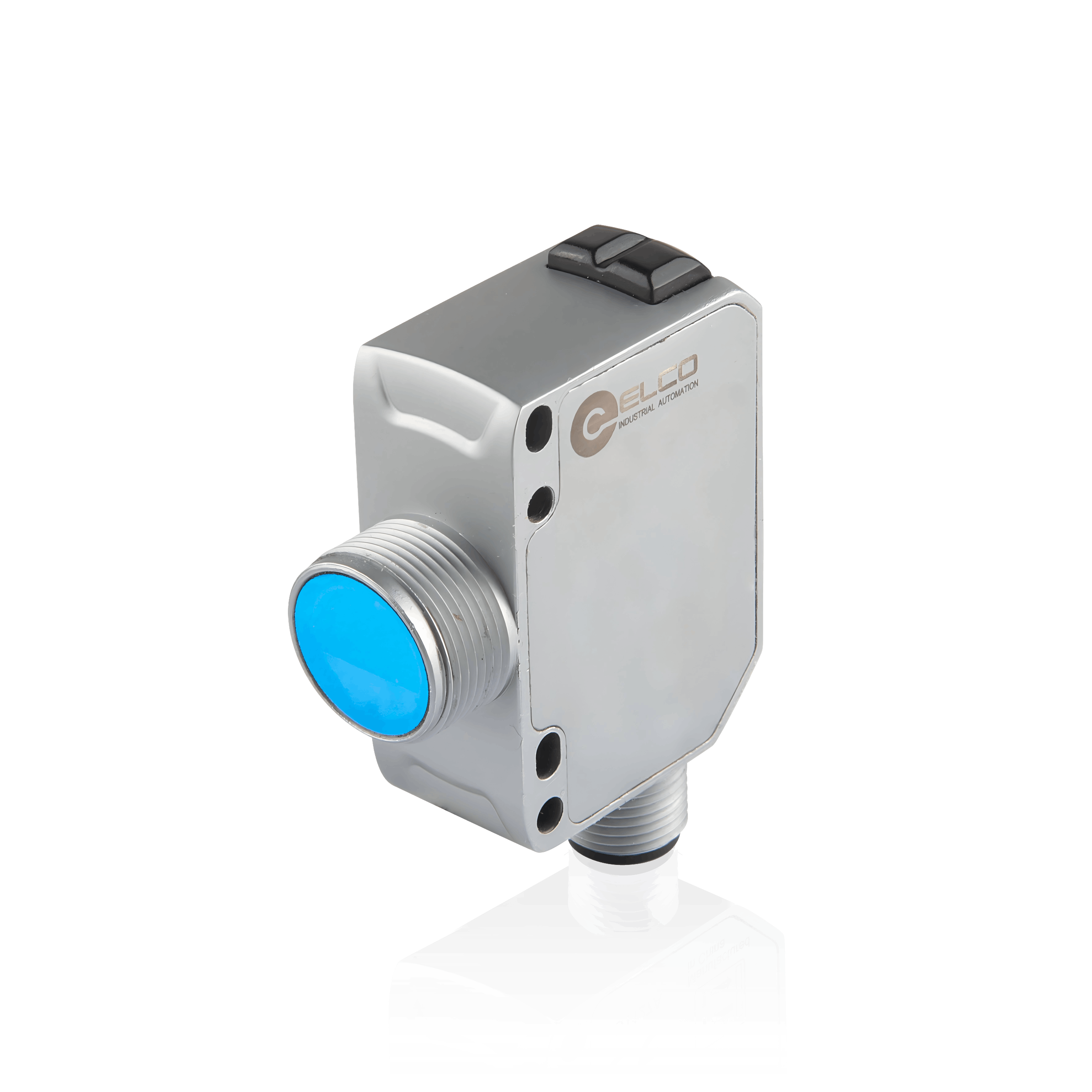

Distance Sensors, OSM45-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 25…300 mm, Resolution 0.1 mm, NPN or PNP, RS-485, 10 … 30 V DC, -10…50°C, IP67, M12 5-pin connector
Key featuresDownloads
  • Detection methodCMOS ranging
  • Sensing range25 … 300 mm
  • Light sourceRed laser / Class 1
  • Spot size1 × 2 mm @ 300 mm
  • Resolution0.1 mm
  • Repeatability1 mm @ 25 … 100 mm & 3 mm @ 100 … 300 mm
  • Output typeNPN / PNP & RS-485
  • Output statusL.O / D.O
  • Response time1.5 ms / 3 ms / 10 ms / 25 ms / 50 ms
  • Supply voltage10 … 30 V DC
  • Load current≤ 100 mA
  • Ambient temperature-10 … +50 ℃
  • Anti-ambient light≤ 5000 lux
  • Housing MaterialDie-cast zinc
  • ConnectionConnector
  • Connection typeM12, 5-pin
  • IP ratingIP67
