EAC58B6-GS6XPCR-8192EAND
Key featuresDownloads
Prices excl. VAT plus shipping costs
Add to favorites Join comparison
Product number: EAC58B6-GS6XPCR-8192EAND

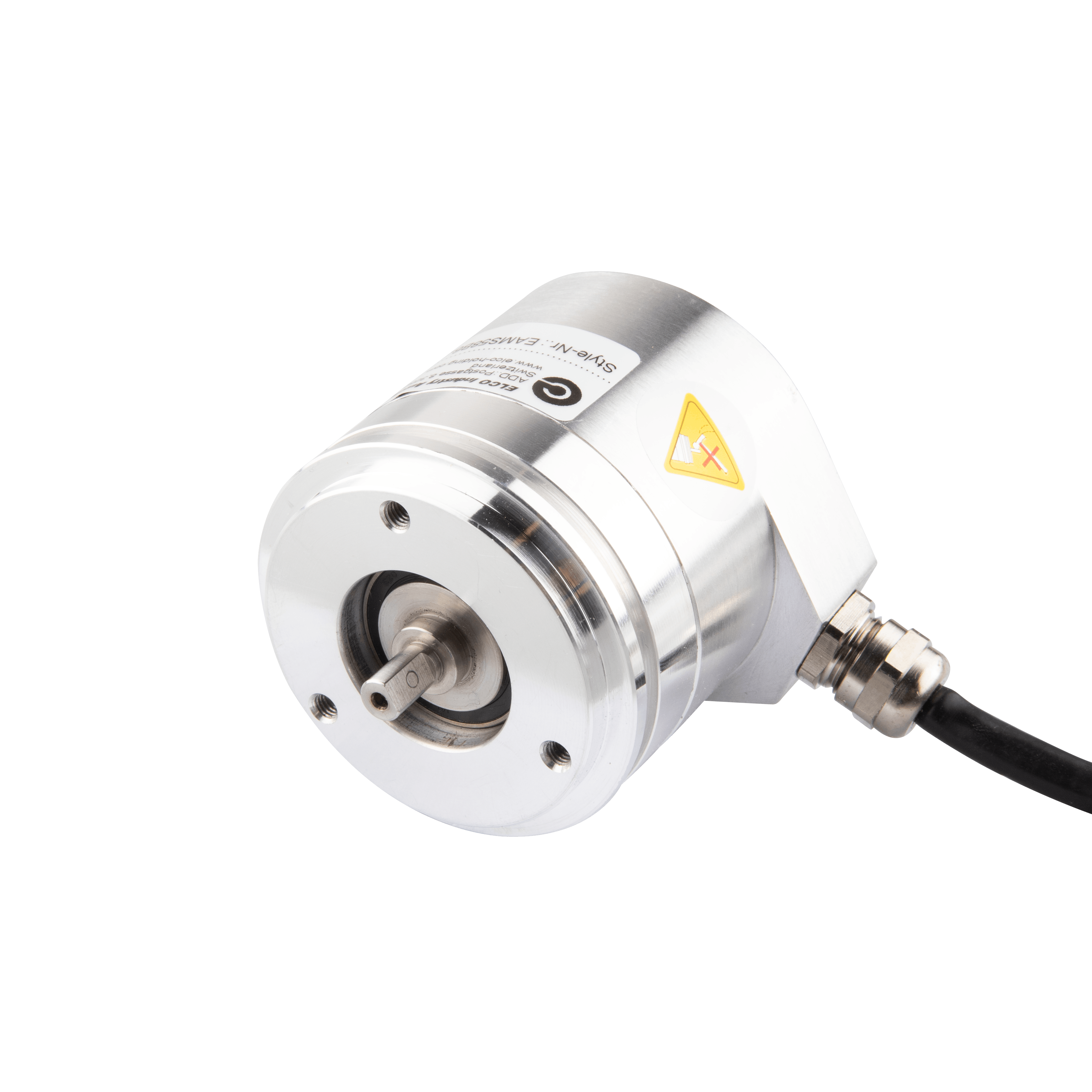

Absolut singleturn encoder, Series EAC58-EAND, Flange synchro,shaft length 10 mm, Shaft 6g6 mm, 10...30 V DC, 4-20mA interface, Radial, Cable 1.5 m, Resolution 8192
Key featuresDownloads
  • Flange typeSynchro flange
  • Shaft diameter6 mm
  • Shaft typeSolid shaft
  • Max load capacity of the shaft60 N Axial
    120 N Radial
  • Ambient temperature-20 ... +80 °C
  • Output codeBinary
  • Vibration resistance10 g, 10 ... 2000 Hz
  • Resolution8192 ppr
  • Connection typeCable outlet
  • Max Speed(rpm)6000 rpm
  • Moment of inertia1.8 x 10-6 kgm2
  • Shock resistance50 g, 11 ms
  • Relative humidity/condensation90 % Condensation not permitted
  • Weight360 g
  • Starting torque＜ 0.01 Nm
  • Supply voltage10 ... 30 V DC
  • Interface type4 ... 20 mA
  • Cable length1.5 m
  • Housing diameter58 mm
  • IP ratingIP65
  • ModelAbsolute Singleturn Encoder
  • Housing materialAl-alloy
