Product number: F12.5-0.3/M16

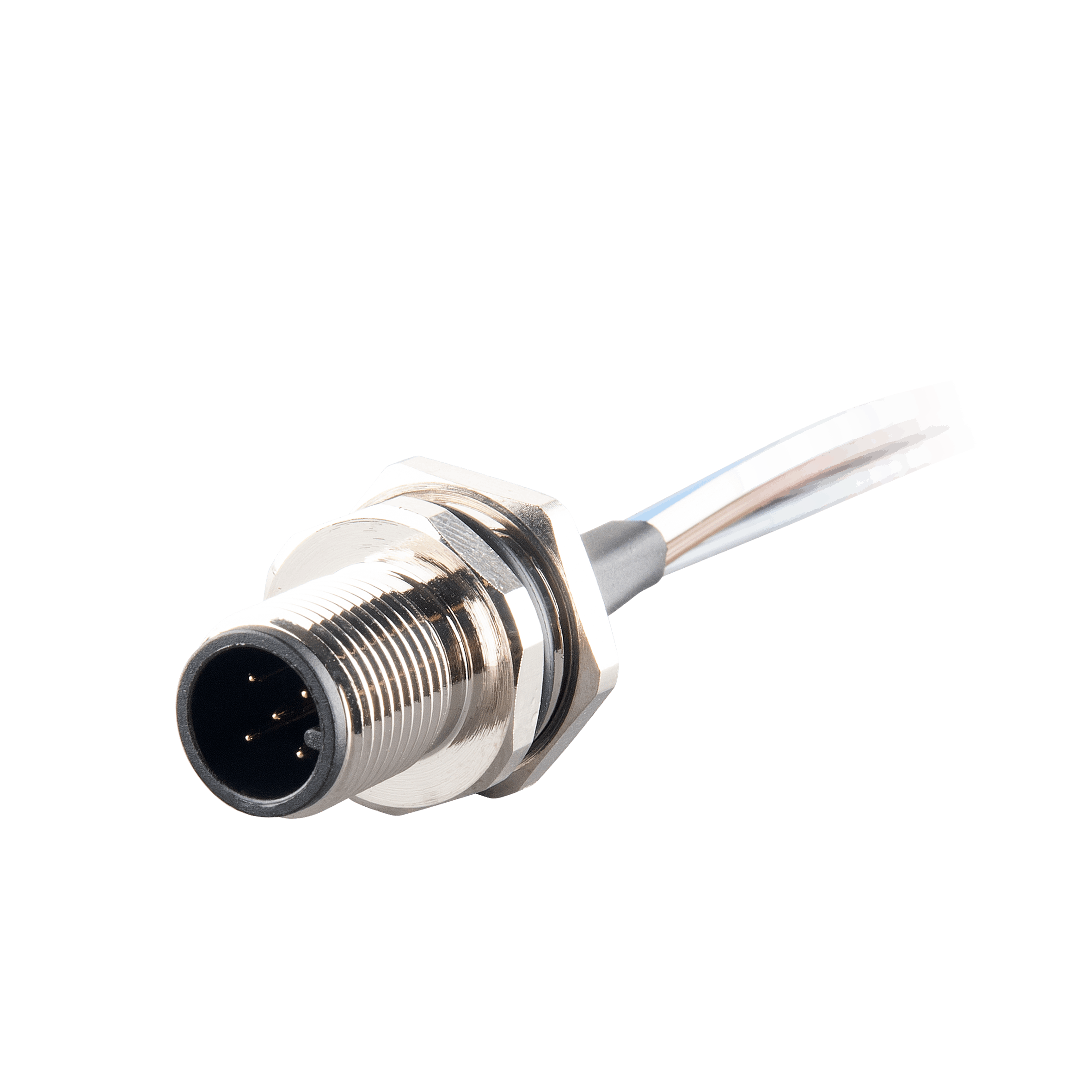

Flange-Mount Bulkhead Connector, with cable, m12 A-code 5-pin Straight male, m16 Hole dimension, Rear mount, with PVC Cable, 0.3 m
Key featuresDownloads
  • Product typeFlange-Mount Bulkhead Connector
  • Termination TypeWith cable
  • Head 1 TypeM8
  • Head 1 CodingA-code
  • Head 1 Number of contacts5
  • Hole dimensionsM16
  • Installation methodsRear mount
  • Nut/bolt materialNickel plated brass
  • Coating contact materialGold-plated copper
  • Material contactTPU
  • Rated voltage60 V AC/DC
  • Rated current4 A
  • Wire cross-sectionMax. 1.0 mm²
  • Cable jacket materialWithout Cable jacket
  • Cable jacket colorWithout Cable jacket
  • Wire insulation materialPVC
  • Wire insulation colorBN,WH,BU,BK,GY
  • Shielded/UnshieldedNO
  • Drag chainFixed installation
  • IP ratingIP67
  • Cable length0.3 m
