Product number: EV50K15-H6PR-1024.CN0003

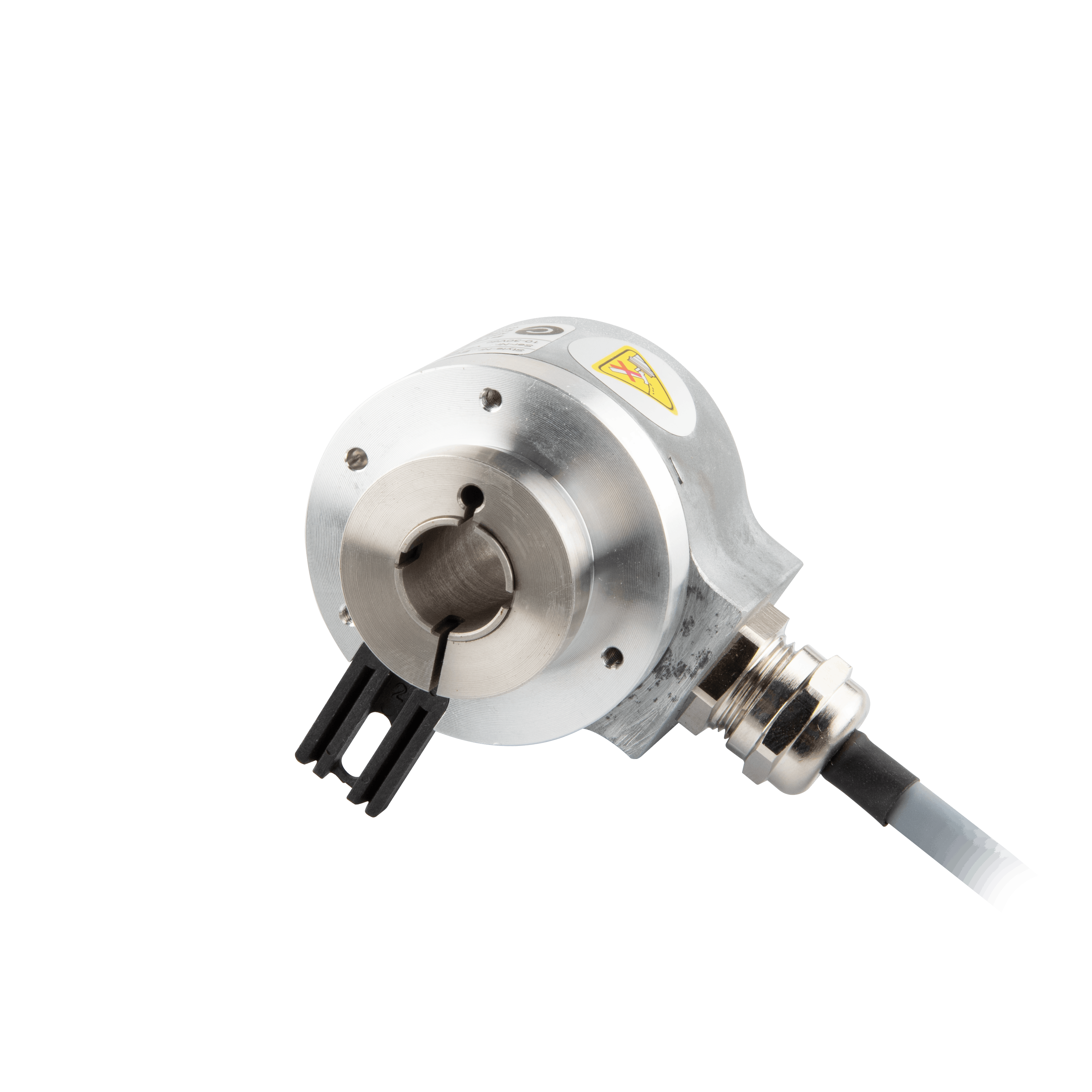

Hollow Shaft Incremental Encoder, EV50 Series, long torque support slot, Shaft Diameter 15H7 mm, Supply Voltage 10...30 V DC, Output Push-pull(with inverted signal), Radial, Cable 0.3 m, Resolution 1024
Key featuresDownloads
  • ModelIncremental encoder
  • Housing materialAl-alloy
  • Housing diameter50 mm
  • IP ratingIP65
  • Flange typeFixing plate
  • Shaft typeThrough hollow shaft
  • Shaft diameter15 mm
  • Max load capacity of the shaft40 N Axial
    80 N Radial
  • Max Speed(rpm)6000 rpm
  • Moment of inertia6 x 10-6 kgm2
  • Starting torque＜ 0.03 N·m
  • Shock resistance50 g, 11 ms
  • Vibration resistance10 g, 10 ... 2000 Hz
  • Relative humidity/condensation90 % Condensation not permitted
  • Ambient temperature-40 ... +85 °C
  • Weight400 g
  • Resolution1024 ppr
  • Supply voltage10 ... 30 V DC
  • Output logicPush-pull HTL with inverted signal
  • Permissible load(channel)±30 mA
  • Pulse frequency300 kHz
  • Connection typeCable outlet
  • Cable length0.3 m
