ELCO OS48 Color Code Sensor - "Color Judge" On Industrial Production Lines

In the field of modern industrial automation, accurate color code detection plays a crucial role in ensuring product quality and improving production efficiency. As an excellent detection device, the Yike OS48 color code sensor stands out in many industries and has become an ideal choice for many enterprises due to its outstanding performance and reliable stability.

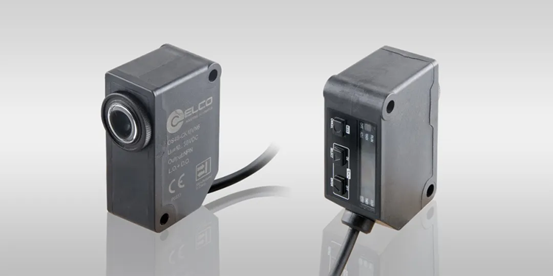

Product features and performance advantages:

◆ LED automatic selection function: Automatically select the best color combination from the three colors of R, G,B LED.

◆ High precision detection: 1 × 5 mm extremely fine light spot provides a solid guarantee for high-precision detection.

◆ Two detection modes: Color mode (ultra high speed response) - automatically selects one (monochrome) from three (R, G, B) LED, capable of achieving a detection mode of 45μs ultra high speed response.Color mode (high-precision discrimination) - simultaneously using LED of three colors (R, G, B), and utilizing the R, G, B ratio of reflected light to achieve high-precision color discrimination of color codes.

◆ Simple setting and numerical management: By teaching with buttons and displaying a 4-digit number, operators can clearly confirm the amount of light entering the color code and background color.

◆ Beginner friendly MODE NAVI: The MODE NAVI displays basic sensor operation items through 6 indicator lights, allowing operators to easily recognize the currently set operation mode with just one glance. The operation is simple and easy to understand.

◆ Stable and reliable: The shell adopts an encapsulated design with an IP67 protection level, which can withstand harsh industrial environments and ensure long-term stable operation.

Technical parameters:

◆ Response time: less than or equal to 45 μ s in color mode and less than or equal to 150 μ s in color mode.

◆ Output configuration: NPN/PNP.

◆ Intrusion protection level: IP67 protection, which can effectively resist the intrusion of dust and water.

◆ Induction method: Reflective induction, detecting color codes by receiving reflected light.

◆ Adjustment type: Adjustable, able to flexibly adjust according to different detection needs.

◆ Light source: RGB composite LED (with peak wavelengths of 622nm/525nm/465nm), providing rich color light sources to meet different color detection needs.

Case one:

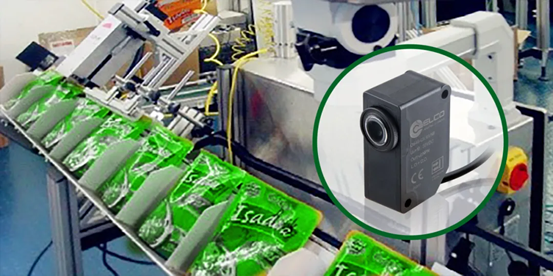

During the printing process of food packaging bags, check the color code to control the positional accuracy of the printing pattern and ensure that the packaging appearance of each bag of food is consistent; Accurately detecting color codes on drug packaging helps with proper packaging and batch identification of drugs.


Case two:
In the process of multi-color printing, by detecting color codes, color deviations can be detected and corrected in a timely manner to improve the quality of printed products.

Application field:

◆ Packaging industry: Used in the packaging process of food, pharmaceuticals, daily chemical products, etc., to detect the color code on packaging materials, ensuring the accuracy of packaging printing and the quality of product packaging
◆ Printing industry: Testing the color codes on printed materials to adjust the parameters of printing equipment, ensuring the accuracy of printing colors and overlay precision
◆ Textile industry: In the production and printing process of textile fabrics, the color code on the fabric is detected to control the consistency of printing and dyeing colors and the accuracy of pattern patterns
◆ Electronic manufacturing industry: used in the production and testing process of electronic components to identify the color code on the surface of the components, achieve automated sorting and quality inspection
