OS10S-AK1000CP6
Key featuresDownloads
Prices excl. VAT plus shipping costs
Add to favorites Join comparison
Product number: OS10S-AK1000CP6

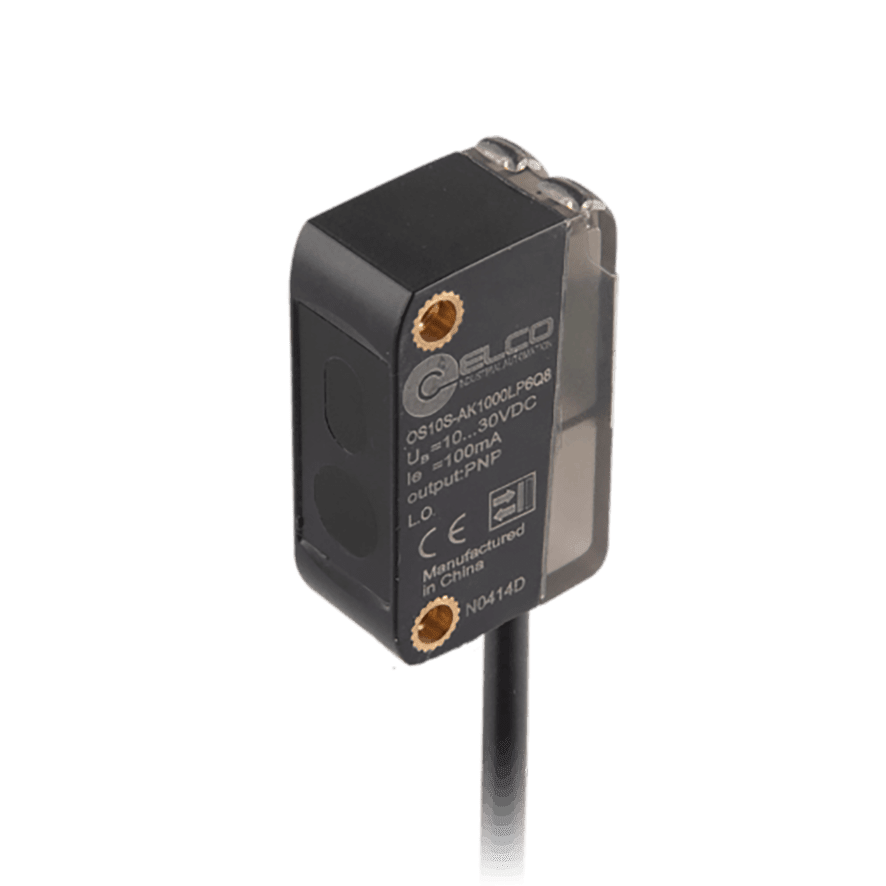

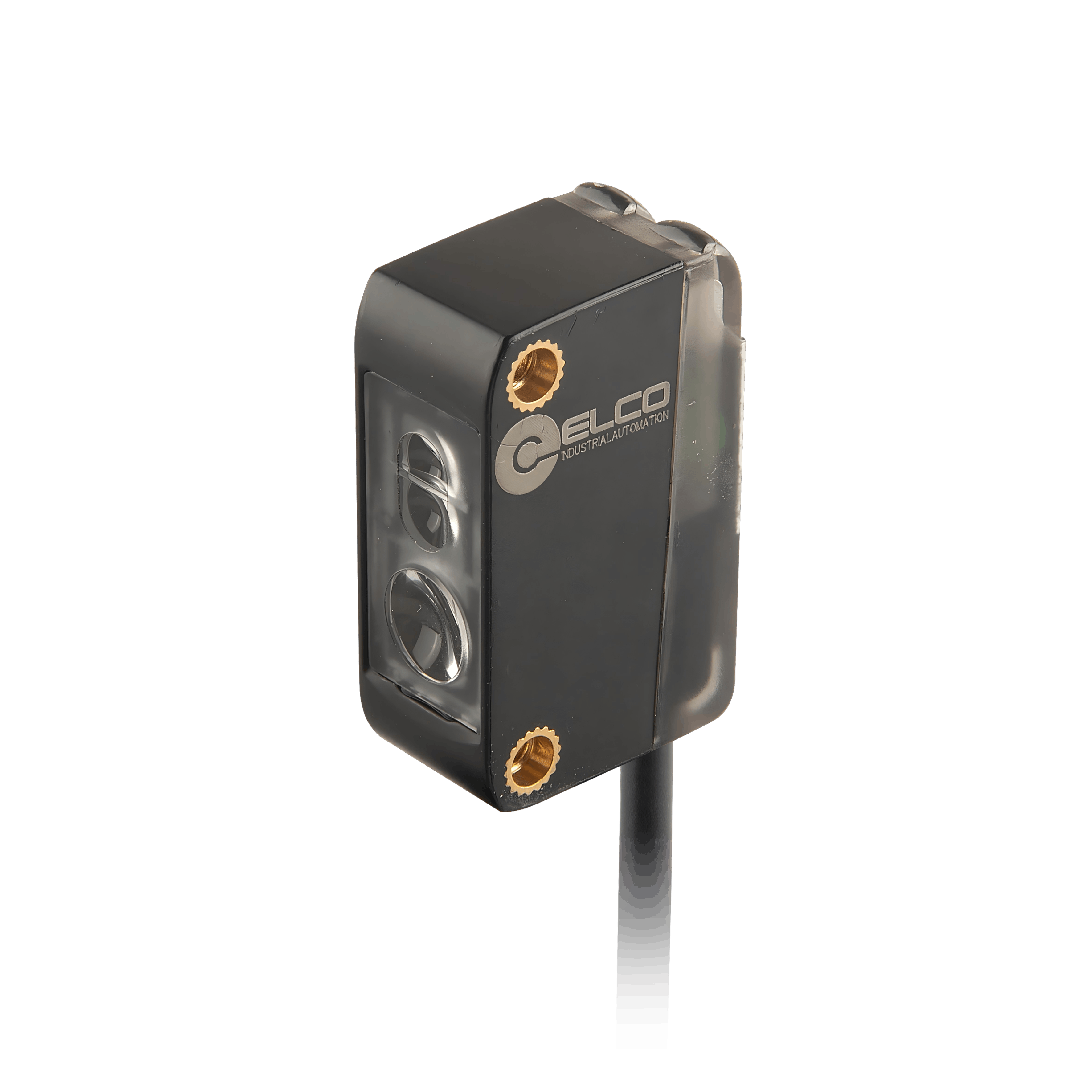

Photoelectric Sensors, OS10S-Series, Diffused with BGS, Infrared laser + red beam indicator, Operating range 50 ... 1000mm, Teach Button, PNP, L.O / D.O, 10…30VDC, -20…60°C, Switching frequency 30 Hz, IP67, Cable 2m
Key featuresDownloads
  • Detection methodTOF BGS Diffused
  • Sensing range50 … 1000 mm
  • Light sourceInfrared laser + Red LED indication / Class 1
  • Spot size3 cm @ 1 m
  • Output typePNP
  • Output statusL.O / D.O
  • Switching frequency30 Hz
  • Supply voltage10 ... 30 V DC
  • Load current≤ 100 mA
  • Ambient temperature0 … +55 ℃
  • Anti-ambient light≤ 10000 lux
  • Housing materialPC + PBT
  • ConnectionCable
  • Connection type2 m , PVC
  • IP ratingIP67
