EV58P12-H6PR-1024.CN0015
Key featuresDownloads
Prices excl. VAT plus shipping costs
Add to favorites Join comparison
Product number: EV58P12-H6PR-1024.CN0015

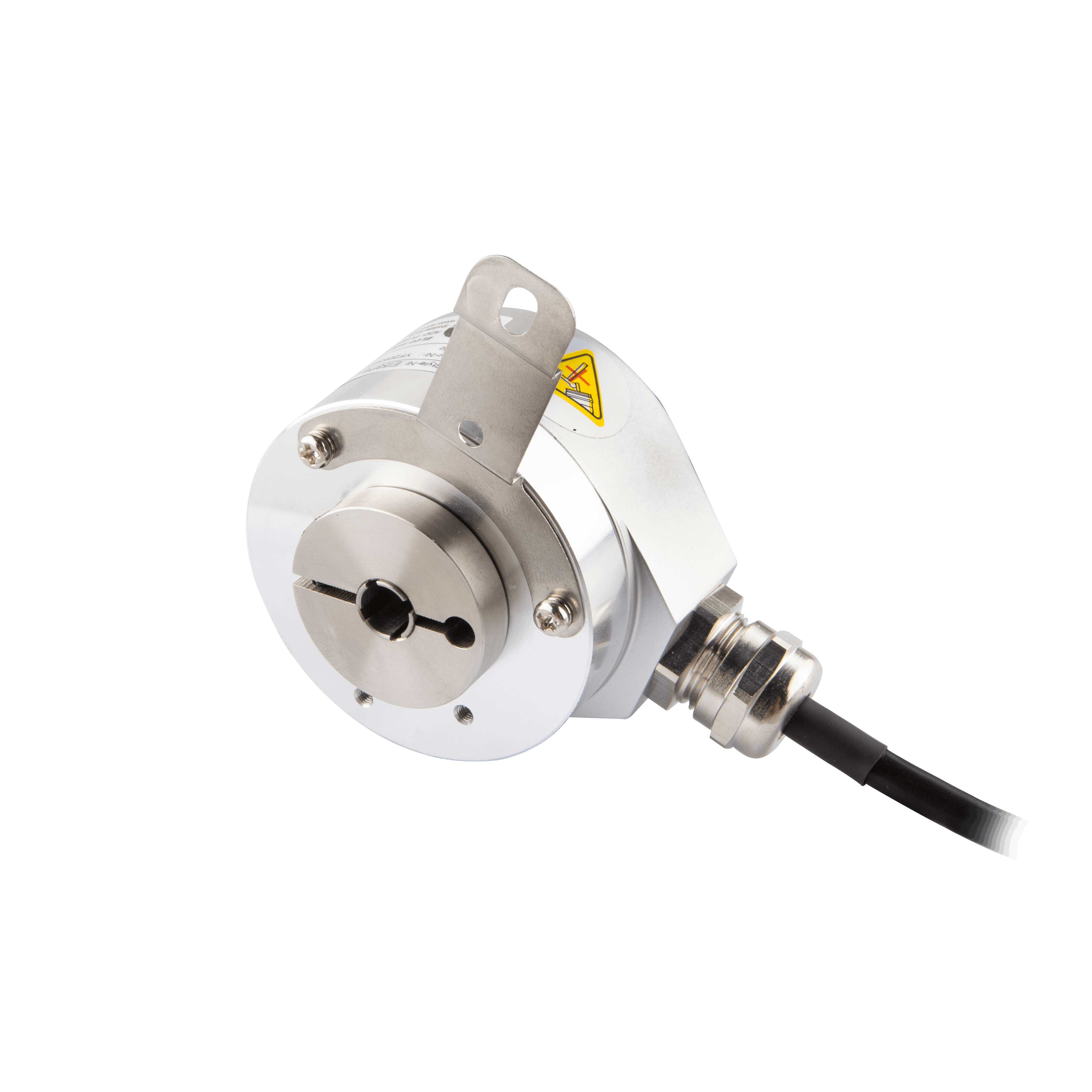

Hollow Shaft incremental encoder, EV58 Series, With fixing sheet, Hollow Shaft Diameter 12H7 mm, Supply Voltage 10...30 V DC, Output Push-pull(with inverted signal), Radial, Cable 1.5 m, Resolution 1024
Key featuresDownloads
  • Max Speed(rpm)6000 rpm
  • Shaft typeThrough hollow shaft
  • Flange typeFixing plate
  • Ambient temperature-20 ... +80 °C
  • Shaft diameter12 mm
  • Shock resistance50 g, 11 ms
  • Vibration resistance10 g, 10 ... 2000 Hz
  • Pulse frequency300 kHz
  • Cable length1.5 m
  • Connection typeCable outlet
  • Permissible load(channel)±30 mA
  • Housing materialAl-alloy
  • Output logicPush-pull HTL with inverted signal
  • Housing diameter58 mm
  • IP ratingIP65
  • Starting torque＜ 0.03 Nm
  • Relative humidity/condensation90 % Condensation not permitted
  • Supply voltage10 ... 30 V DC
  • Weight400 g
  • Resolution1024 ppr
  • ModelIncremental encoder
  • Moment of inertia6 x 10-6 kgm2
  • Max load capacity of the shaft60 N Axial
    120 N Radial
