OSM40-KL300CB6Q12.1/IO
Key featuresDownloads
Prices excl. VAT plus shipping costs
Add to favorites Join comparison
Product number: OSM40-KL300CB6Q12.1/IO

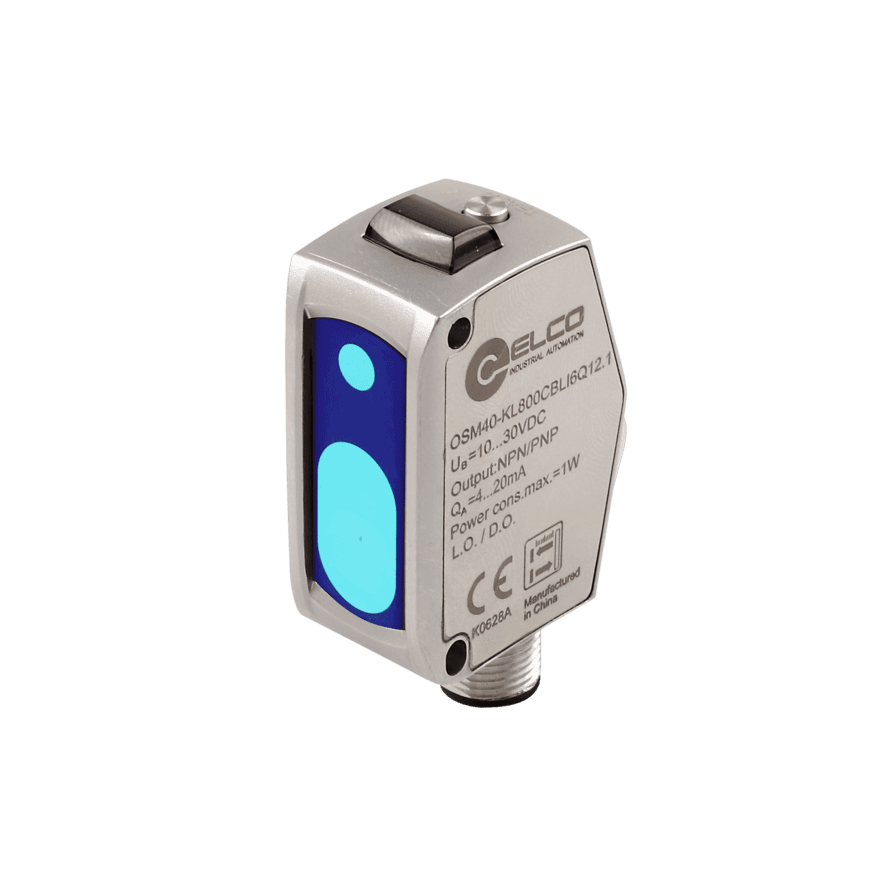

Photoelectric Sensors, OSM40-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 100…300 mm, Resolution 0.1 mm, NPN or PNP, IO-Link, 10…30 VDC, -10…50°C, IP67, M12 5-pin connector
Key featuresDownloads
  • Detection methodCMOS ranging
  • Sensing range100 … 300 mm
  • Light sourceRed laser / Class 2
  • Spot size0.5 mm @ 200 mm
  • Resolution0.1 mm
  • Repeatability0.3 mm @ 100 ... 300 mm
  • Output typeNPN / PNP & IO-Link
  • Output statusL.O / D.O
  • Response time1.5 ms / 5 ms / 10 ms
  • Supply voltage10 ... 30 V DC
  • Load current≤ 150 mA
  • Ambient temperature-10 … +50 ℃
  • Anti-ambient light≤ 5000 lux
  • Housing MaterialStainless steel
  • ConnectionConnector
  • Connection typeM12 , 5-pin
  • IP ratingIP67
