EAC50B8-GC6NPR-1024EU
Key featuresDownloads
Prices excl. VAT plus shipping costs
Add to favorites Join comparison
Product number: EAC50B8-GC6NPR-1024EU

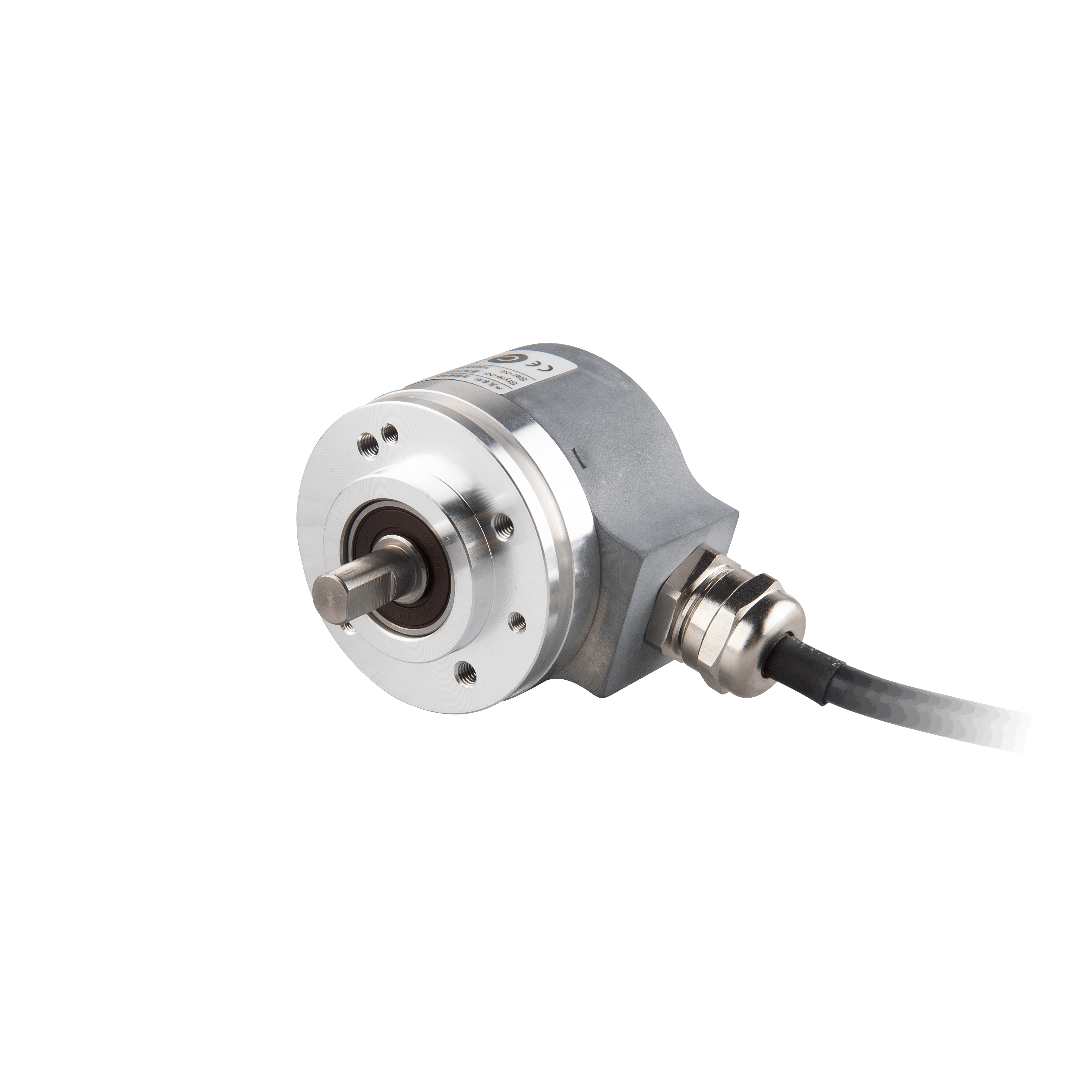

Absolute Singleturn Encoder, EAC50 Series, φ30 mm Round flange, Shaft Diameter 8g6 mm, Supply Voltage 10...30 V DC, Parallel Interface, NPN OC Negative, Gray, Radial, Cable 1.5 m, Resolution 1024
Key featuresDownloads
  • ModelAbsolute Singleturn Encoder
  • Flange typeClamping flange
  • Housing diameter50 mm
  • IP ratingIP66
  • Housing materialAl-alloy
  • Shaft typeSolid shaft
  • Shock resistance50 g, 11 ms
  • Vibration resistance10 g, 10 ... 2000 Hz
  • Max load capacity of the shaft40 N Axial
    80 N Radial
  • Shaft diameter8 mm
  • Ambient temperature-20 ... +80 °C
  • Output codeGray
  • Resolution1024 ppr
  • Connection typeCable outlet
  • Max Speed(rpm)6000 rpm
  • Moment of inertia1.8 x 10-6 kgm2
  • Relative humidity/condensation90 % Condensation not permitted
  • Weight330 g
  • Starting torque＜ 0.01 Nm
  • Interface typeParallel
  • Supply voltage10 ... 30 V DC
  • Cable length0.5 m
