EV28A5-H6PA-512
Key featuresDownloads
Prices excl. VAT plus shipping costs
Add to favorites Join comparison
Product number: EV28A5-H6PA-512

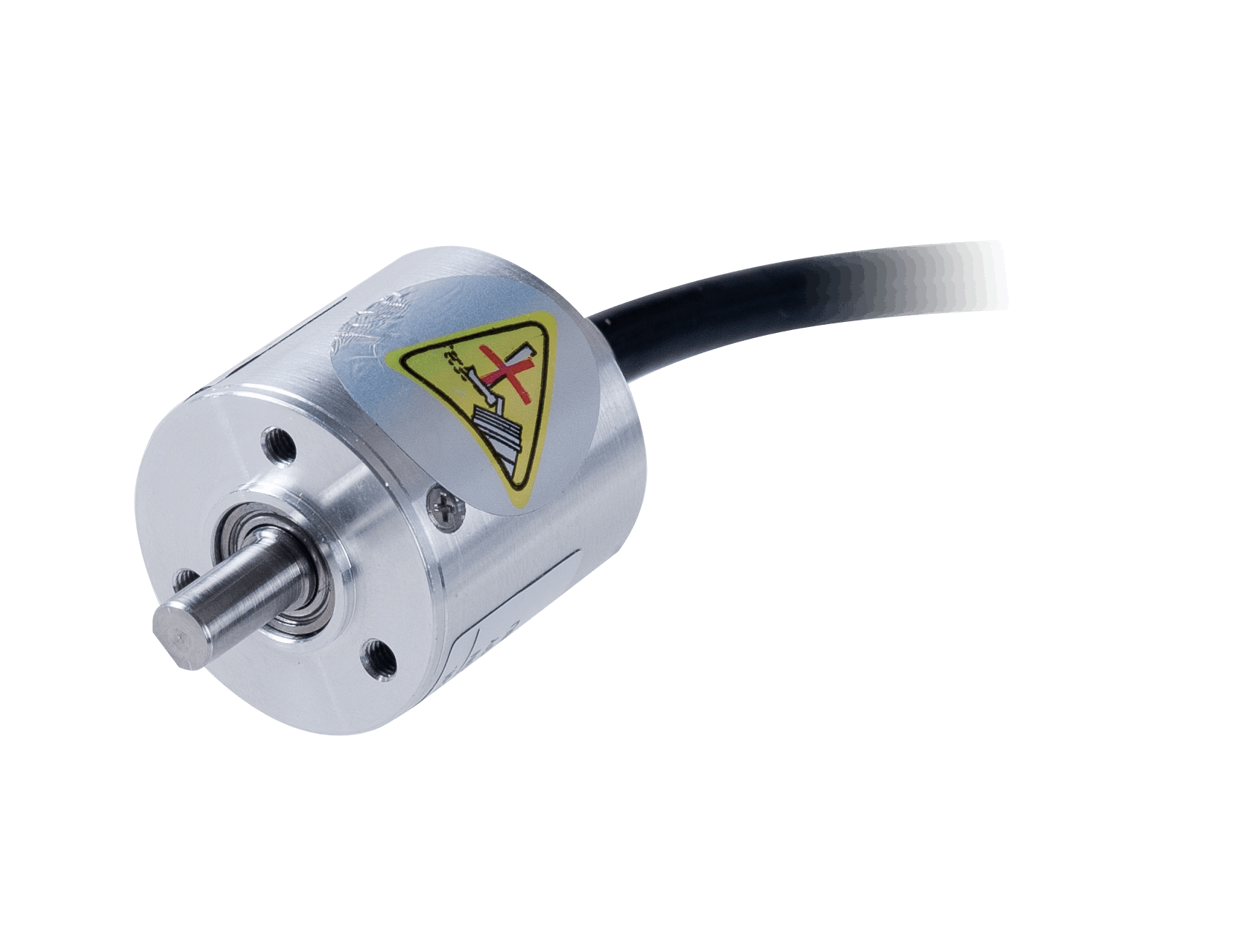

Shaft Incremental Encoder, Easydic Series EV28, 15 mm clamping flange, Shaft 5g6 mm, 10...30 V DC, Output Push-Pull HTL (with inverted signal), Axial, Cable 0.5 m, Resolution 512
Key featuresDownloads
  • ModelIncremental encoder
  • Housing materialAl-alloy
  • Housing diameter28 mm
  • IP ratingIP50
  • Flange typeClamping flange
  • Shaft typeSolid shaft
  • Shaft diameter5 mm
  • Max load capacity of the shaft5 N Axial
    10 N Radial
  • Max Speed(rpm)6000 rpm
  • Moment of inertia7 x 10-6 kgm2
  • Starting torque＜ 0.01 N·m
  • Shock resistance30 g, 11 ms
  • Vibration resistance6 g, 10 ... 2000 Hz
  • Relative humidity/condensation90 % Condensation not permitted
  • Ambient temperature-20 ... +80 °C
  • Weight100 g
  • Resolution512 ppr
  • Supply voltage10 ... 30 V DC
  • Output logicPush-pull HTL with inverted signal
  • Permissible load(channel)±30 mA
  • Pulse frequency300 kHz
  • Connection typeCable outlet
  • Cable length0.5 m
