EV50A8-P6PR-1024.CN0020
Key featuresDownloads
Prices excl. VAT plus shipping costs
Add to favorites Join comparison
Product number: EV50A8-P6PR-1024.CN0020

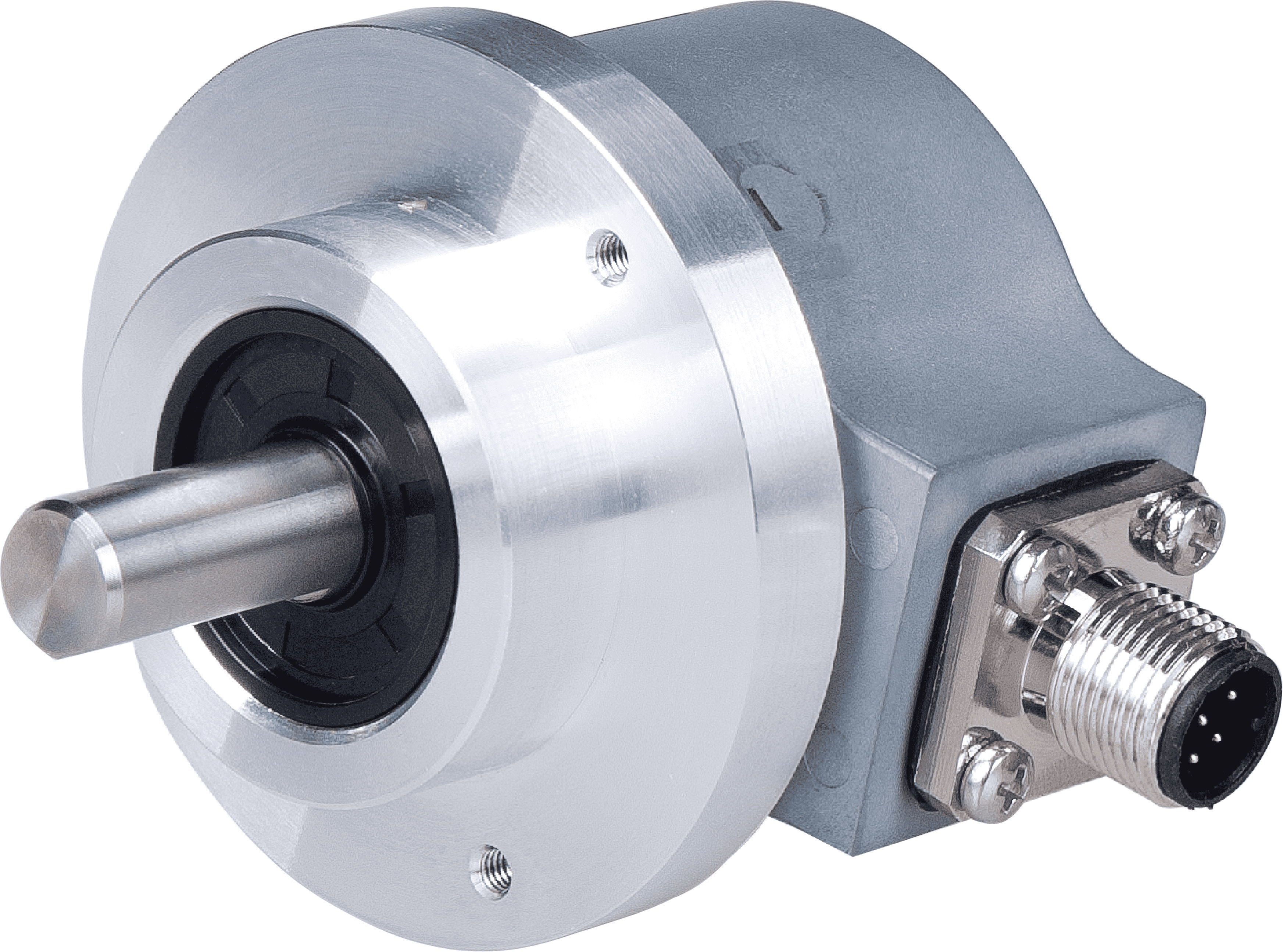

Shaft incremental encoder, EV50 Series, φ50.8 mm Synchro flange, Shaft Diameter 8g6 mm, Supply Voltage 10...30 V DC, Output Push-pull(without inverted signal), Radial, Cable 2 m, Resolution 1024
Key featuresDownloads
  • ModelIncremental encoder
  • Housing materialAl-alloy
  • Housing diameter50 mm
  • IP ratingIP65
  • Flange typeClamping flange
  • Shaft typeSolid shaft
  • Shaft diameter8 mm
  • Max load capacity of the shaft40 N Axial
    80 N Radial
  • Max Speed(rpm)6000 rpm
  • Moment of inertia1.9 x 10-6 kgm2
  • Starting torque＜ 0.01 Nm
  • Shock resistance50 g, 11 ms
  • Vibration resistance10 g, 10 ... 2000 Hz
  • Relative humidity/condensation90 % Condensation not permitted
  • Ambient temperature-40 ... +85 °C
  • Weight400 g
  • Resolution1024 ppr
  • Supply voltage10 ... 30 V DC
  • Output logicPush-pull HTL without inverted signal
  • Permissible load(channel)±30 mA
  • Pulse frequency300 kHz
  • Connection typeCable outlet
  • Cable length2 m
