FO12.12-2/M16
Key featuresDownloads
Prices excl. VAT plus shipping costs
Add to favorites Join comparison
Product number: FO12.12-2/M16

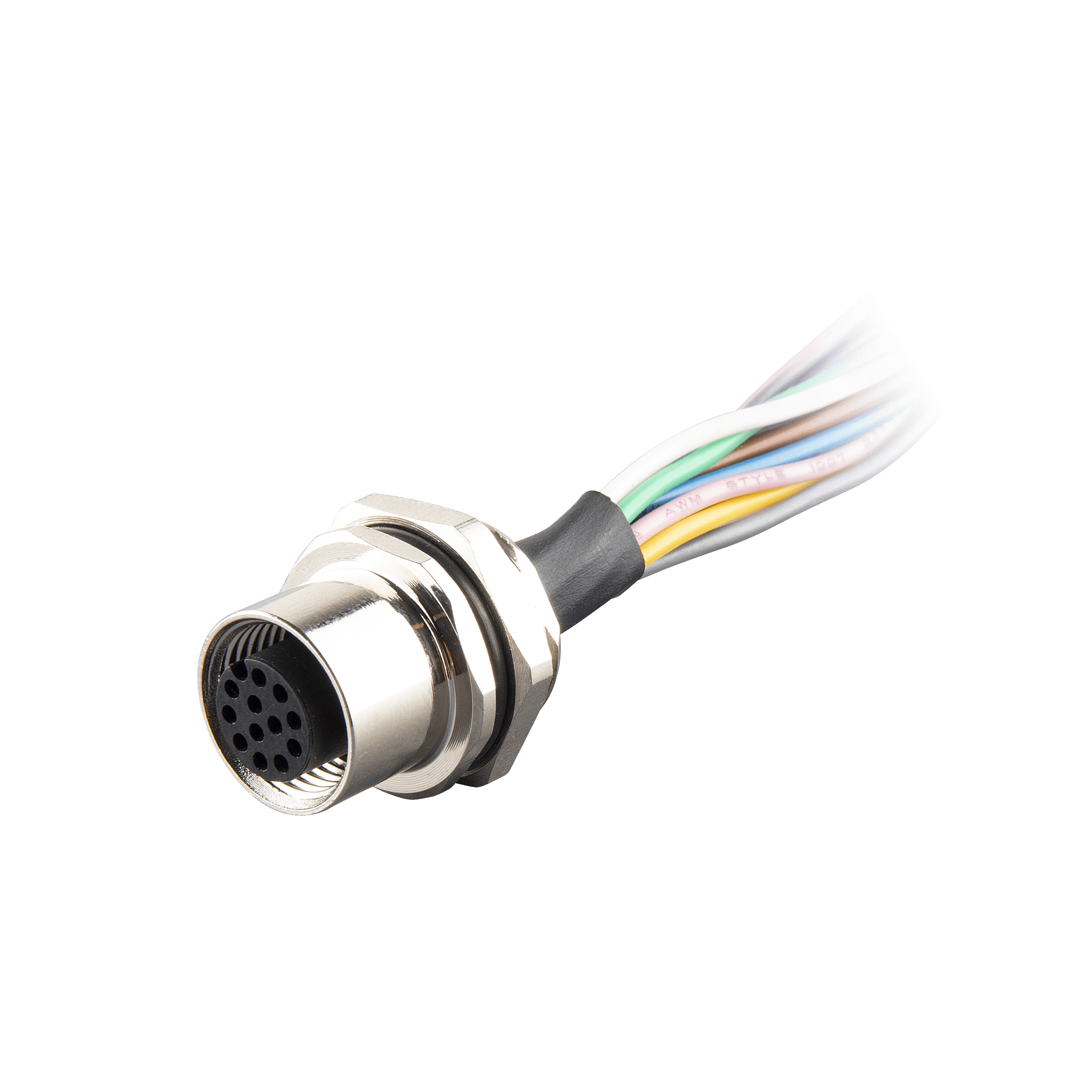

Flange-Mount Bulkhead Connector, with cable, m12 A-code 12-pin Straight Female, m16 Hole dimension, Rear mount, with PVC Cable, 2 m
Key featuresDownloads
  • Nut/bolt materialNickel plated brass
  • Hole dimensionsM16
  • Coating contact materialGold-plated copper
  • Rated current1.5 A
  • Cable jacket colorWithout Cable jacket
  • Cable jacket materialWithout Cable jacket
  • Wire insulation materialPVC
  • Rated voltage30 V AC/DC
  • Material contactTPU
  • Wire insulation colorBN,BU,WH,GN,PK,YE,BK,GY,RD,VT,GY/PK,RD/BU
  • Shielded/UnshieldedNO
  • Drag chainFixed installation
  • IP ratingIP67
  • Cable length2 m
  • Installation methodsRear mount
  • Wire cross-sectionMax. 0.25 mm²
  • Termination TypeWith cable
  • Head 1 TypeM12
  • Head 1 Number of contacts12
  • Product typeFlange-Mount Bulkhead Connector
  • Head 1 CodingA-code
