Product number: FO12.4-0.5/M16

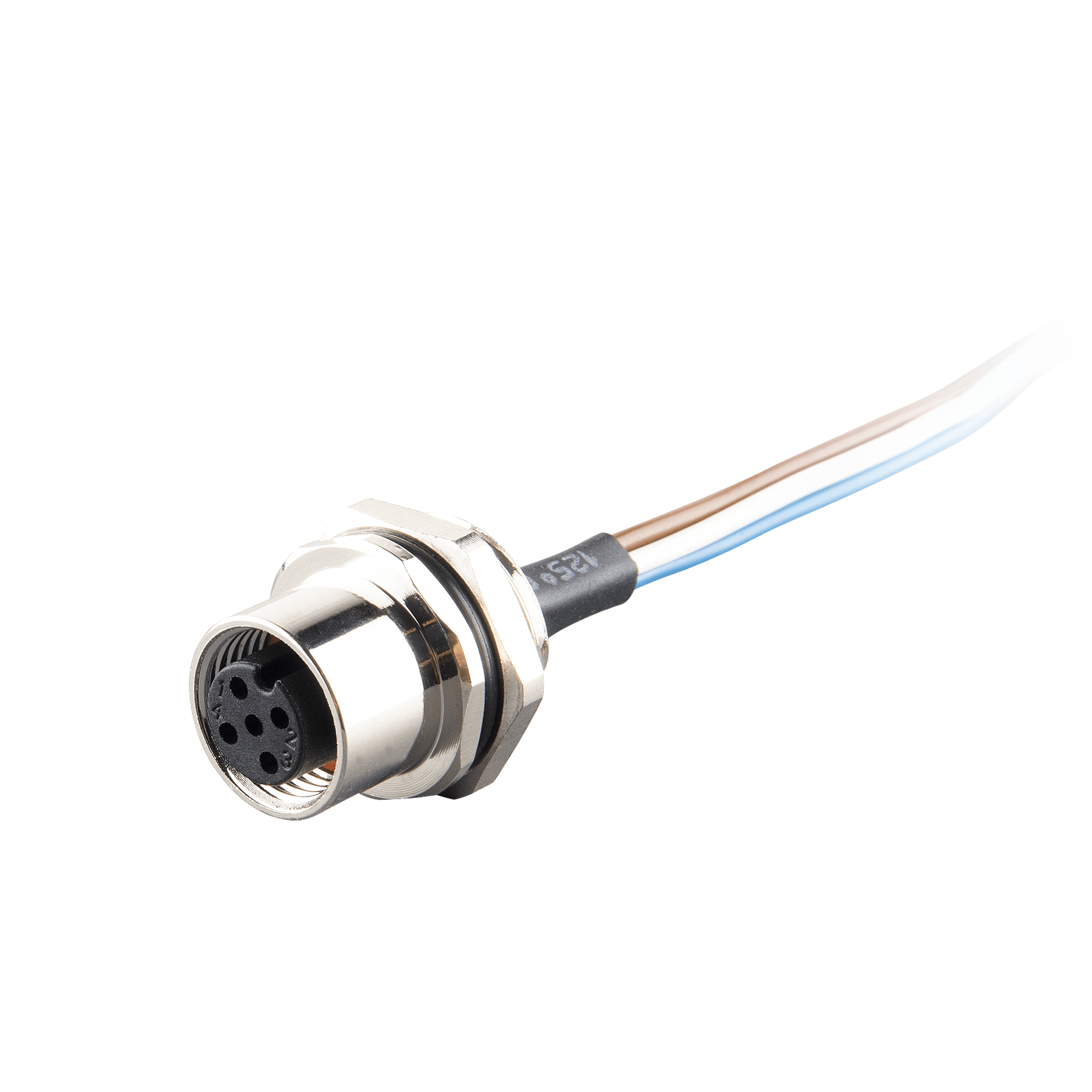

Flange-Mount Bulkhead Connector, without cable, m12 A-code 4-pin Straight Female, m16 Hole dimension, Rear mount, with PVC Cable, 0.5 m
Key featuresDownloads
  • Installation methodsRear mount
  • Coating contact materialGold-plated copper
  • Rated current4 A
  • Cable jacket colorWithout Cable jacket
  • Cable jacket materialWithout Cable jacket
  • Wire insulation materialPVC
  • Wire insulation colorBN,WH,BU,BK
  • Drag chainFixed installation
  • Shielded/UnshieldedNO
  • Rated voltage250 V AC/DC
  • Material contactTPU
  • IP ratingIP67
  • Nut/bolt materialNickel plated brass
  • Cable length0.5 m
  • Hole dimensionsM16
  • Wire cross-sectionMax. 1.0 mm²
  • Termination TypeWith cable
  • Head 1 TypeM12
  • Head 1 Number of contacts4
  • Product typeFlange-Mount Bulkhead Connector
  • Head 1 CodingA-code
