Product number: FO12.5-0.3/M16/F

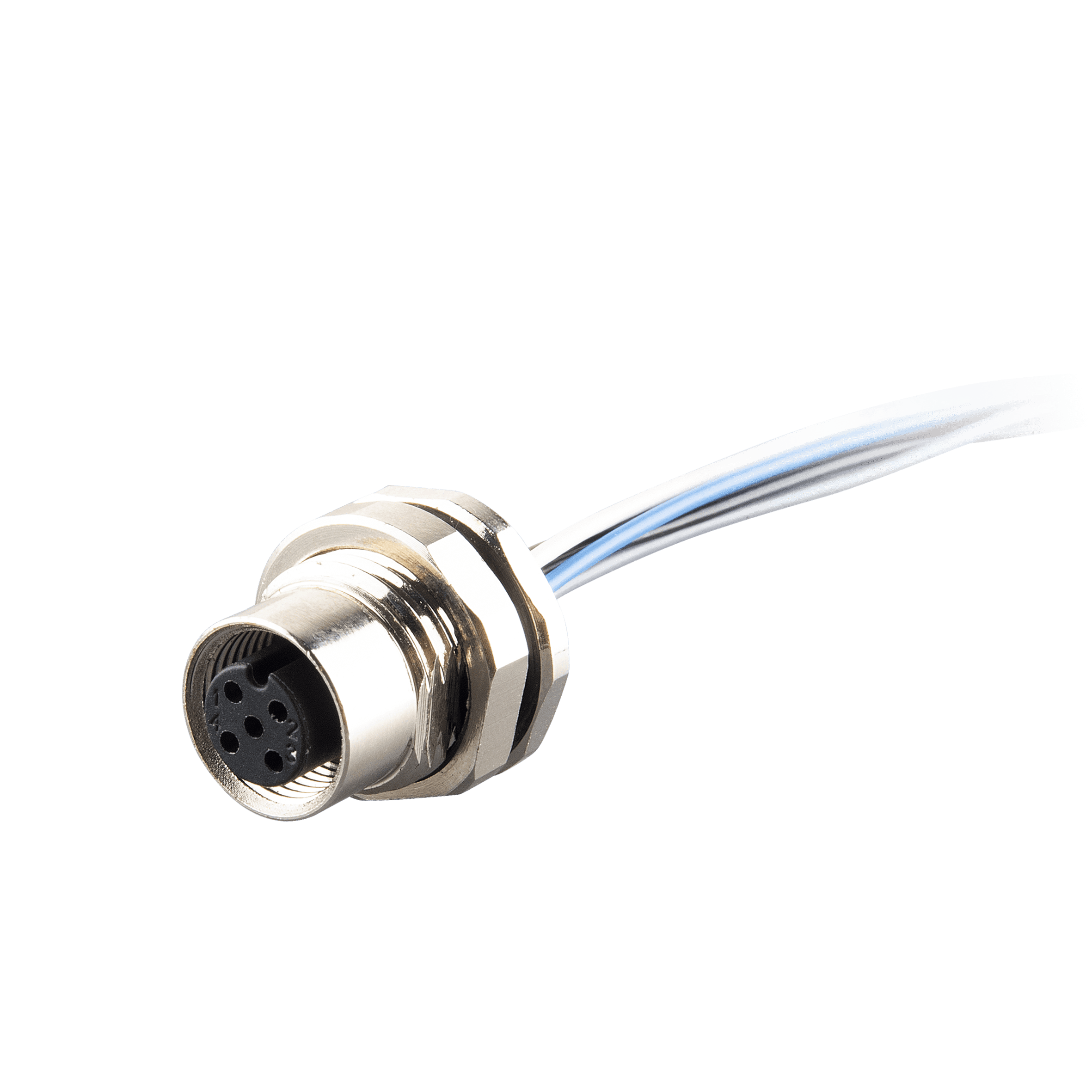

Flange-Mount Bulkhead Connector, without cable, m12 A-code 5-pin Straight Female, m16 Hole dimension, Front mount, with PVC Cable, 0.3 m
Key featuresDownloads
  • Coating contact materialGold-plated copper
  • Rated voltage60 V AC/DC
  • Rated current4 A
  • IP ratingIP67
  • Cable jacket colorWithout Cable jacket
  • Cable jacket materialWithout Cable jacket
  • Wire insulation materialPVC
  • Wire insulation colorBN,WH,BU,BK,GY
  • Shielded/UnshieldedNO
  • Material contactTPU
  • Drag chainFixed installation
  • Cable length0.3 m
  • Hole dimensionsM16
  • Nut/bolt materialNickel plated brass
  • Installation methodsFront mount
  • Wire cross-sectionMax. 1.0 mm²
  • Product typeFlange-Mount Bulkhead Connector
  • Termination TypeWith cable
  • Head 1 TypeM12
  • Head 1 Number of contacts3
  • Head 1 CodingA-code
