OSM42-KL2000C2B6-0.3-Q12
Key featuresDownloads
Prices excl. VAT plus shipping costs
Add to favorites Join comparison
Product number: OSM42-KL2000C2B6-0.3-Q12

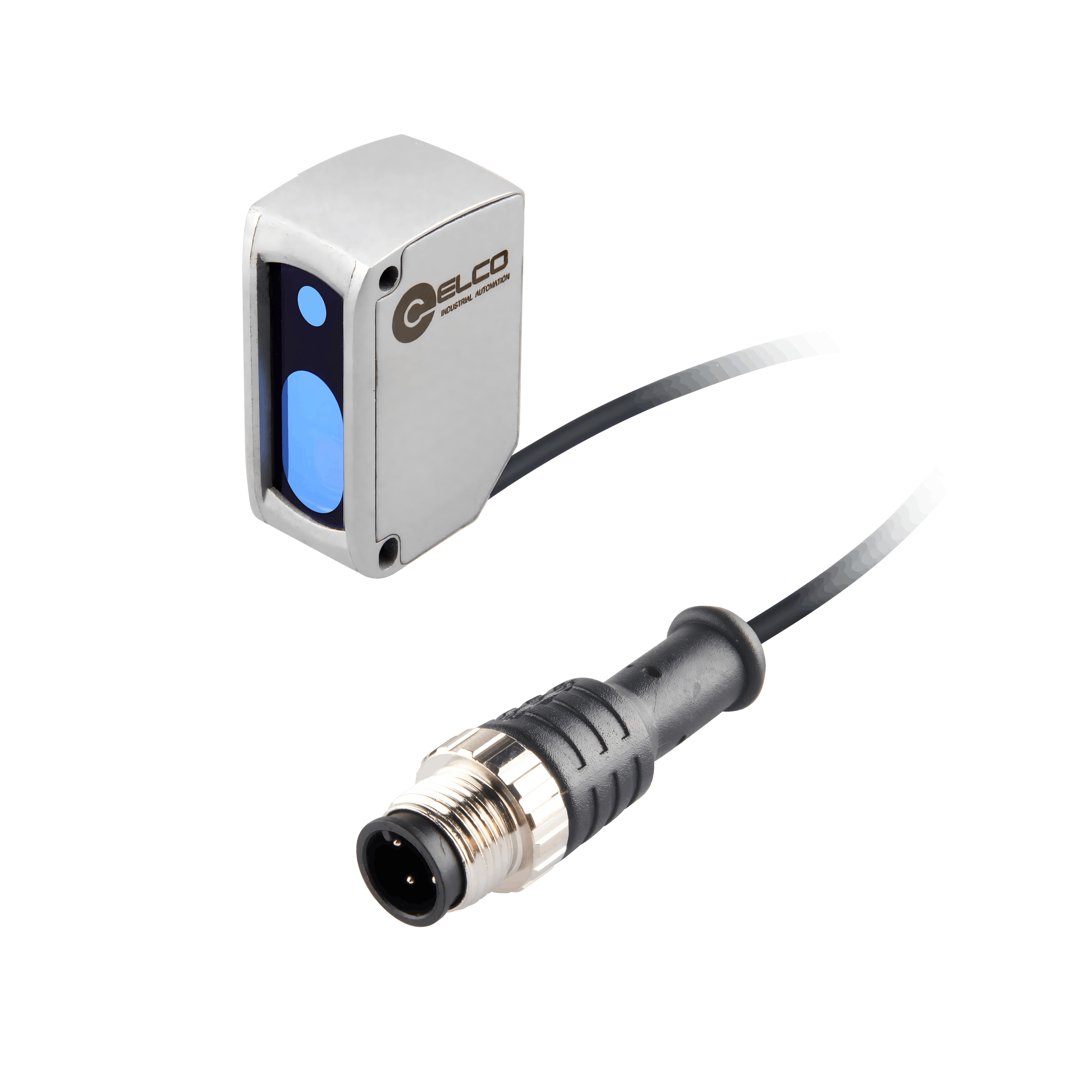

Distance Sensors, OSM42-Series, Laser Distance Sensor (Triangulation), Red laser, Operating range 150…2000 mm, Resolution 1 mm, 2 x Push-Pull, Teach button, 10 … 30 V DC, -10…50°C, IP67, 0.3 m Cable + M12 4-pin connector
Key featuresDownloads
  • Light sourceRed laser / Class 2
  • Detection methodCMOS ranging
  • Sensing range150 … 2000 mm
  • Spot size3 mm @ 2000 mm
  • Resolution1 mm
  • Repeatability2 mm @ 600 mm & 5 mm @ 800 mm & 10 mm @ 2000 mm
  • Output type2 × NPN / PNP
  • Output statusL.O / D.O
  • Response time30 HZ
  • Supply voltage10 ... 30 V DC
  • Load current≤ 150 mA
  • Ambient temperature-10 … +50 ℃
  • Anti-ambient light≤ 5000 lux
  • Housing MaterialDie-cast zinc
  • ConnectionM12 Pigtail
  • Connection type0.3 m Cable + M12, 4-pin
  • IP ratingIP67
