Product number: FCEN-8LKM-8A-MP4

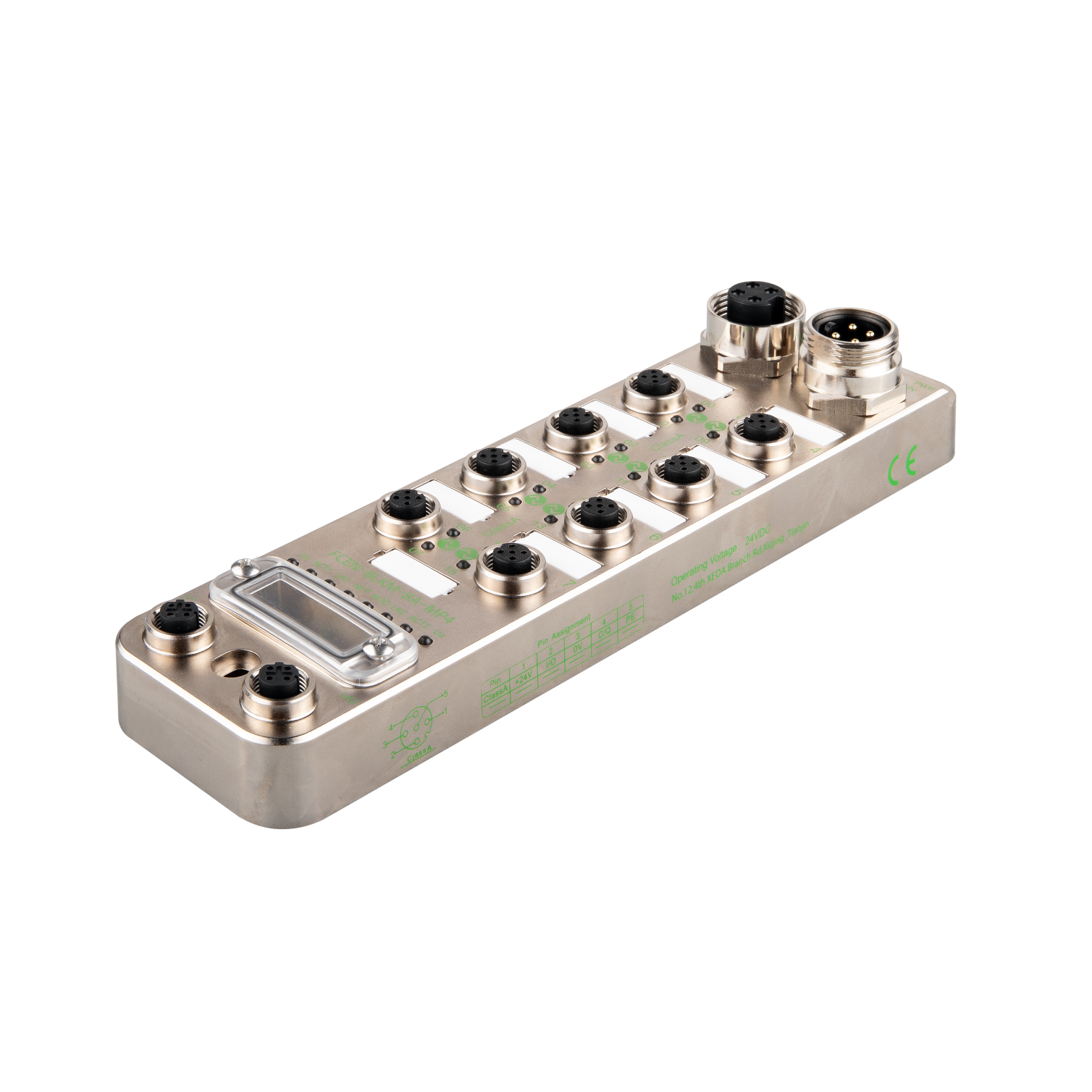

IO-Link Master Compact67 Multiprotocol PROFINET / Ethernet/IP, Auto-negotiation, Auto-MDI/MDI-X, COM1 (4.8kbps), COM2 (38.4kbps), COM3 (230.4kbps), Webserver, 8x Class A, IO-Link V1.1.2, Max. 16 I/O, 8xM12 A-code 5pin female, 2xM12 D-code 4pin female, 2x7/8" 4pin male + female
Key featuresDownloads
  • Communication protocolEtherNet/IP
  • IP ratingIP67
  • Housing materialDie-cast Zinc
  • Power connection2 x 7/8" 4-pin
  • Fieldbus connection2 x M12 D-Code
  • Power supply18 ... 30 V DC
  • Extension port8 x IO-Link
  • Signal connection8 x M12 A-Code
  • Signal typeIO-Link, Digital I/O
  • Number of channels8 Class-A, 8 DI + 8 DI/DO
  • Input typePNP
  • Output typePNP
  • Dimensions60 x 230 x 37.8 mm
  • Ambient temperature-25 ... +70 °C
  • Storage temperature-40 ... +85 °C
  • CertificateCE
