OSM61-KL30C2BLIU6/485-0.3-Q12.8
Key featuresDownloads
Prices excl. VAT plus shipping costs
Add to favorites Join comparison
Product number: OSM61-KL30C2BLIU6/485-0.3-Q12.8

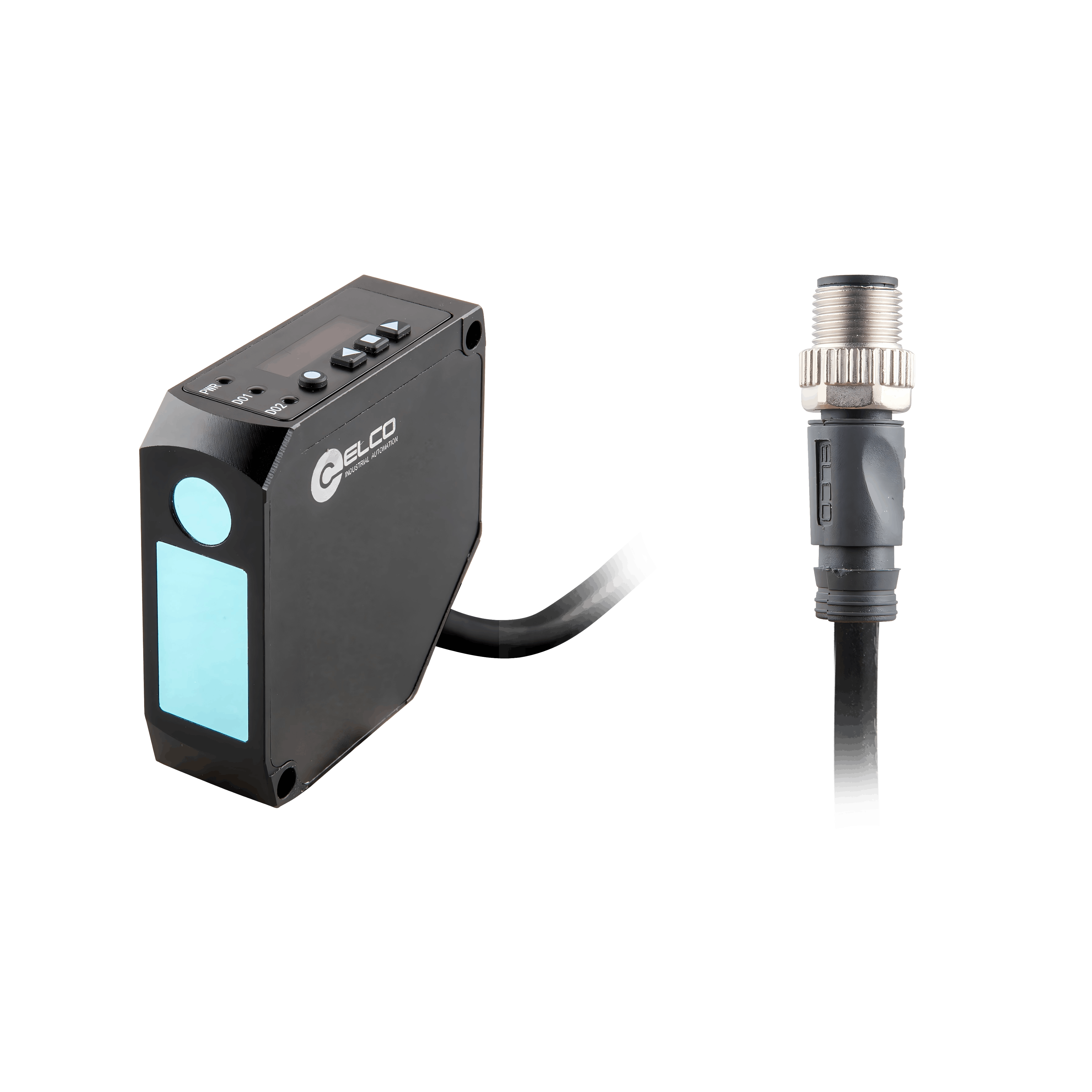

Distance Sensors, OSM61-Series, Laser Distance Sensor (Micrometer distance measurement), Red laser, Operating range 30 mm +/- 4 mm, Resolution 1 μm, 2×NPN or PNP, RS-485, 10 … 30 V DC, -10…50°C, IP67, 0.3 m Cable + M12 8-pin connector
Key featuresDownloads
  • Detection methodCMOS ranging
  • Sensing range30 ± 4 mm
  • Light sourceRed laser / Class 2
  • Spot size0.8 mm @ 30 mm
  • Resolution0.001 mm
  • Repeatability1 um @ 26 ... 34 mm
  • Output typeNPN / PNP / Push-pull & 4 ... 20 mA / 0 ... 10 V & RS-485
  • Output statusL.O / D.O
  • Response time200 us / 500 us / 1 ms / 2 ms
  • Supply voltage10 ... 30 V DC
  • Load current≤ 150 mA
  • Ambient temperature-10 … +50 ℃
  • Anti-ambient light≤ 5000 lux
  • Housing MaterialAluminum alloy
  • ConnectionM12 Pigtail
  • IP ratingIP67
  • Connection type0.3 mm Cable + M12, 8-pin
