EAM58B6-BF6XXR-4096/1024DP
Key featuresDownloads
Prices excl. VAT plus shipping costs
Add to favorites Join comparison
Product number: EAM58B6-BF6XXR-4096/1024DP

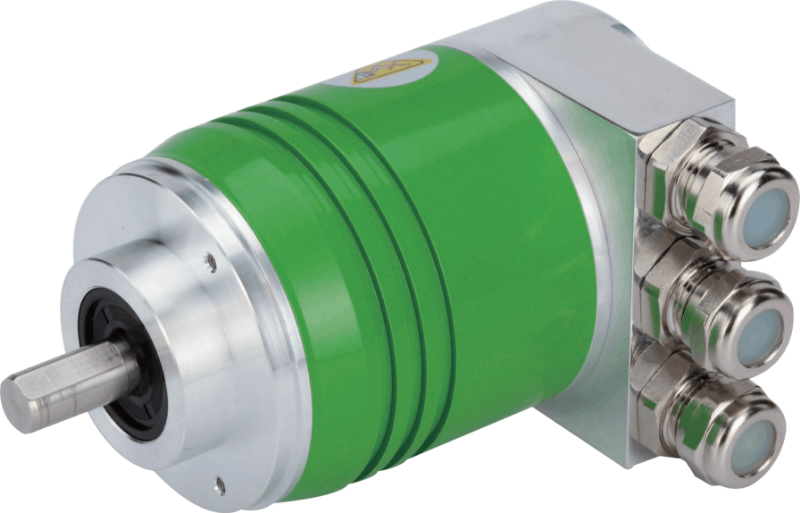

Absolut multiturn encoder, Series EAM58-DP, Flange synchro，shaft length 10mm, Shaft 6g6mm, 10-30VDC, Profibus-DP interface, Radial, integrated coupler terminal box with 3 PG7 threaded connectors, Resolution 4096/1024
Key featuresDownloads
  • ModelAbsolute Multiturn Encoder
  • Housing materialAl-alloy
  • Housing diameter58 mm
  • IP ratingIP65
  • Flange typeSynchro flange
  • Shaft typeSolid shaft
  • Shaft diameter6 mm
  • Max load capacity of the shaft80 N Axial
    160 N Radial
  • Max speed(rpm)6000 rpm
  • Moment of inertia1.8 x 10-6 kgm2
  • Starting torque＜ 0.05 Nm
  • Shock resistance50 G/11 ms
  • Vibration resistance10 G 10 ... 2000 Hz
  • Relative humidity/condensation90 % Condensation not permitted
  • Ambient temperature-40 ... +80 °C
  • Weight800 g
  • Resolution1024 ppr
  • Supply voltage10 ... 30 V DC
  • Interface typeProfibus-DP
  • Output codeBinary
  • Connection typeTerminal block wiring
